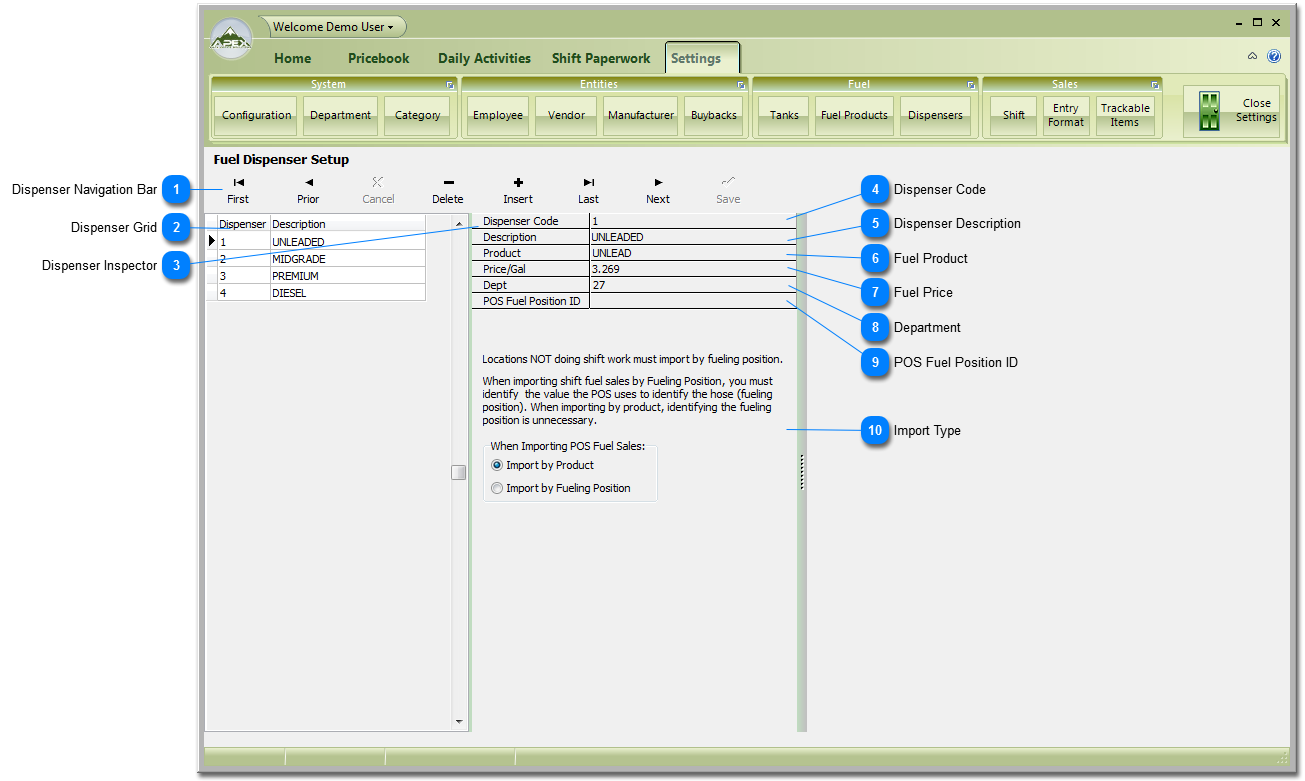

Fuel Dispenser Setup displays all the Fuel Dispensers currently in the system. Dispensers can be Inserted (Added), Edited or Deleted and descriptions changed. Making chnages to this information will affect sales numbers in the Fuel Sales screen.
Dispensers must be set up to sell and track Fuel. Before Dispensers can be setup, Tanks and Fuel Products must be setup first.
In most cases Dispensers will be set up to based upon Fuel Grade sales. In other words, one Dispenser for Unleaded, one Dispenser for Premium..etc. If it is needed, actual Dispenser sales tracking can be set up for each position there is a hose pumping Fuel. Not all POS systems support sending hose position information back.
Dispenser Navigation Bar
Insert new, Delete and Save entries in the Dispenser grid. Please see Grid Navigation instructions here if you are not sure about these controls.

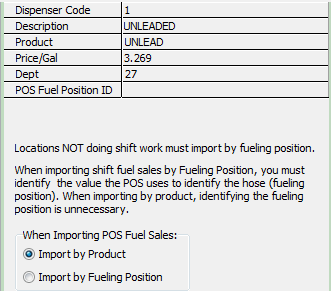

The Inspector shows all the information about the Dispenser selected in the Dispenser Grid. This is where the information for the Dispensers is entered and edited.
The code is the Dispenser number. Mandatory field. The most common configuration is to set up one Dispenser for each Fuel Product sold. If set up for each actual Dispenser or position is needed, we recommend putting a 0 before the single digit Dispenser Positions like 01 for 1 and 02 for 2 etc. This will make reading reports and sorting easier.
Enter the ID that identifies this Dispenser as it is set up in POS system. This will not be used if 'Import by Product' is selected in 10 'Import Type' below.

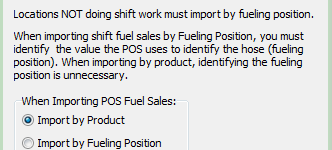

Select the Import type for this POS system. Generally, 'Import by Product' is used. If tracking each Dispenser will be tracked, select 'Import by Fueling Position' and make sure to set up every Dispenser (Position or Hose).
